JUDK 4 Screw Terminal Block High Inflammability Class , Fused Terminal Block Common Packing
1. DESCRIPTION
WonkeDQ Components stocks Terminal Blocks and DIN Rail Terminals to cover a wide range of applications including machinery, automotive industry, railway and process engineering.
These terminal blocks are mounted on TS-35/32 DIN rails. They offer a various selection of connection methods and available with the complete range of accessories.
The screw terminal blocks are ideal for industrial power distribution equipment and control panel wiring applications.
The phoenix UDK 4 terminal blocks have three connections to be led to one terminal block. It allows four wires to be connected to one potential and can be used as compact power distributors.
Easy to operate.
Long durable time.
Double in and double out terminal block.
Stable and low contact resistances.
Perfectly suitable for electrical machine control systems
Comprehensive range of accessories: Plug-in bridges, marking strips, marking holder.
All types of materials are guaranteed in quality.
Body made from Nylon PA66, Metal parts made of nickle plated copper.
It accomplishes this without any additional terminal blocks or bridges.

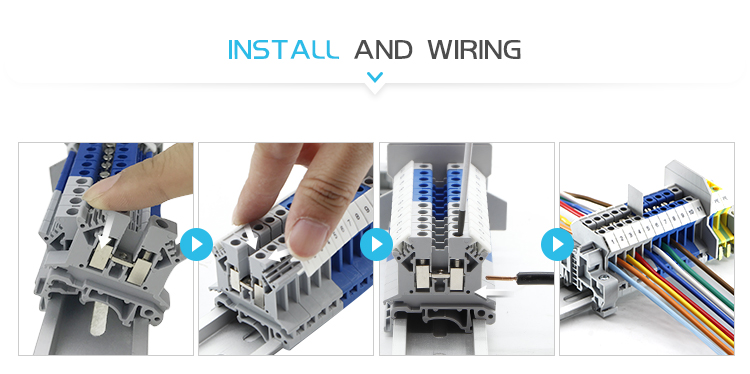

With universal foot which can be used on Din Rail NS 35mm mounting.
2. TECHNICAL PARAMETERS
| Model No. | JUDK 4, Twin Modular Terminal Block |
| Color | Grey, Orange, Yellow/Green |
| Dimension (mm) | L64/W46.2/H6.2 |
| Connecting | Screw connecting |
| Material | Nylon PA66 |
| Rated Voltage/Current | 690V/32A |
| Cross section, solid/stranded Cable | 0.2-6 mm² / 0.2-4 mm² |
| Conductor Size | 24-10 AWG |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| Brand | WonkeDQ |
| Package | 14.35g/piece, 50PCS/BOX,2000PCS/Carton |
| Certification | CE/RoHS/CQC/ISO 9001 |
